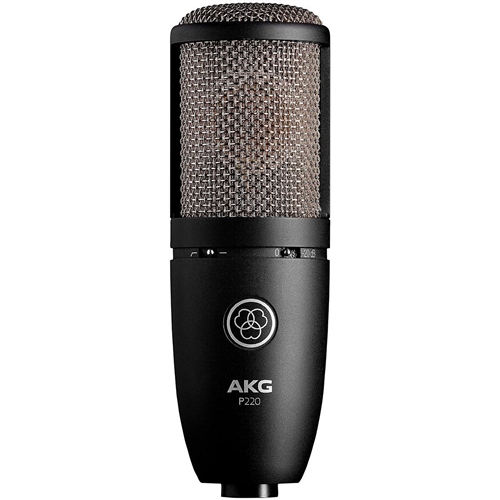

AKG's P220 is a large-diaphragm condenser mic that delivers versatile performance and reliability, whether you're capturing sources in a pro studio, recording at home, or mixing front of house. Featuring a cardioid pickup pattern, switchable 20dB attenuation pad, and bass roll-off switch, the P220 has what you need to get great sound anywhere - it's built rugged enough to take the stage, while being sensitive and accurate enough to find a home in any studio mic locker.

The P220 ships with an aluminum carrying case and spider shock mount

Project Studio P220 Large Diaphragm Condenser Microphone from AKG features a 1" true condenser capsule with a cardioid polar pattern. A low-cut filter at 300 Hz allows you to cut unwanted low end from your sources, while its selectable -20 dB pad allows the mic to handle SPLs up to 155 dB, allowing it to be placed in front of a variety of sources.

APPLICATIONS
» Project Studios
» Stage

HIGHLIGHTS
» Rugged all-metal body and robust design
withstands tough day-to-day use
» Switchable bass-cut filter
eliminates rumble or footfall noise
» Switchable attenuation pad
for high SPL applications up to 155 dB SPL

• Capsule 1" True Condenser
• Polar Pattern Cardioid
• Frequency Response 20 Hz to 20 kHz
• Sensitivity 20 MV/PA (-34 dBV)
• Maximum SPL 135/155 dB (0/-20 dB Pad) (0.5% THD)
• Equivalent Noise Level 16 dB(A) (IEC 60286-4)
• Signal to Noise Ratio 78 dB(A) Re 1 PA
• Pad -20 dB
• Low Cut Filters 300 Hz, 12 dB/Octave
• Impedance Electrical Impedance: ≤ 200 Ω
• Recommended Load Impedance: ≥ 1000 Ω
• Connector 3-pin XLR (pin 2 hot)
• Phantom Power 48 V ± 4 V to (IEC 61938)
• Current Consumption ≤ 3 MA
• Temperature Range 14 to 140°F (-10 to 60°C)

AKG Project Studio P220 Spider Shockmount Carry Case Limited 2-Year Warranty


Limited Warranty valid United States of America (*) and Canada (**):
AKG Acoustics warrants AKG products against defects in material or workmanship for a period of two years from the date of original purchase, and agrees to repair or, at our option replace any defective unit without charge for either parts or labor. AKG grants a three-year warranty covering select products mainly studio and boundary layer microphones (see list of products above) against defects in material and workmanship This warranty is valid for AKG or AKG/CROWN products purchased and delivered within the United States (*) / Canada (**) for the original purchaser only. The purchaser’s Bill of Sale will serve as proof of sale and warranty validity in the U.S (*) / Canada (**). Shipment of defective items to AKG for repair will be at the customer’s own risk and expense. AKG will assume the return shipping cost for all items repaired under warranty.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product, loss of parts, or connecting the product to any receptacle other than specified.

This warranty is void unless AKG Acoustics, U.S.’s service center(*) / the authorized AKG Service Center of Canada (**) performs the repair. No responsibility is assumed for any special, incidental or consequential damages caused by the consumer. However, the limitation of any right or remedy shall not be effective where law prohibits such.

General Return Procedures for US AKG Service
SA# IS REQUIRED for AKG repair service. Please call (818) 920-3237 and request a service authorization prior to sending out any repairs. Please be sure to attach the SA# on the outside of any repair you send in. This step will enable us to determine where your particular repair will need to be sent to insure that nothing gets lost.

RA# is REQUIRED for AKG credit returns. Please call (818) 920-3276 and request a return authorization prior to returning any AKG purchases. Please be sure to attach the RA# on the outside of any returns you send in. This step will insure that the return procedure is completed smoothly.

All AKG customer-owned products being returned for warranty service must include a copy of the customer’s bill-of-sale. Warranty approvals will not be granted if an original receipt or copy of a receipt is not enclosed.

Please enclose a note explaining the symptom or difficulties observed with the product’s performance. Also, include a contact name, the street address for return shipping and a daytime phone number should AKG need to contact you regarding your repair.
