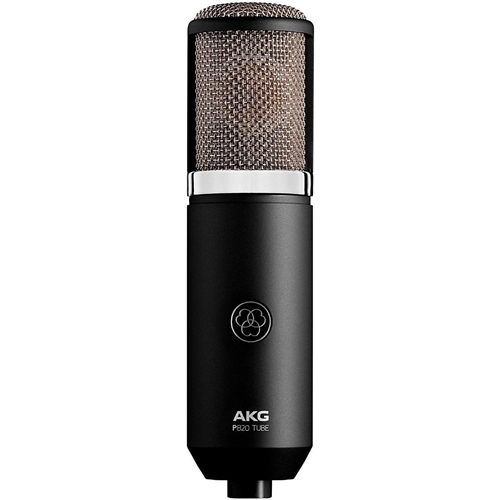

The P820 Tube Condenser Mic is the flagship of AKG's Project Studio line. Serving up rich sonics as only a tube mic can, the P820 Tube offers excellent versatility, giving you a choice of cardioid, onmi, and figure-8 polar patterns - plus six intermediate patterns. These, along with a low-cut filter and 20dB attenuation pad, are all accessed from the included remote power supply.

With its 1" dual-capsule design and advanced ECC83 dual-triode circuitry, the P820 Tube delivers rich, dimensional sound. Naturally, it's great on vocals, but its 155dB SPL rating make the P820 Tube perfect for drums, electric guitars and just about anything else. Comes with a metal carrying case and spider shock mount.

APPLICATIONS
» Professional Studios
» Project Studios

HIGHLIGHTS
» Elegant remote control
allows choice of nine different polar patterns
» Switchable bass-cut filter
eliminates rumble or footfall noise
» Switchable attenuation pad
for high SPL applications up to 155 dB SPL

• Capsule 1" dual capsule condenser
• Polar Pattern 9 selectable polar patterns, selectable on the remote control unit
• Frequency Response 20 Hz to 20 kHz
• Sensitivity Cardioid: 20 MV/PA (-34 dB V)
• Maximum SPL 135/155 dB (0/-20 dB Pad) for 0.5% THD
• Equivalent Noise Level 16 dB (A), IEC 60286-4
• Signal to Noise Ratio 78 dB (A) Re: 1 PA
• Pad -20 dB (selectable on remote control unit)
• Bass Cut Filter 80 Hz, 12 dB/Oct (selectable on remote control unit)
• Impedance Electrical Impedance: ≤ 200 Ohms
• Recommended Load Impedance ≥ 1000 Ohms
• Connector Microphone to Remote Control Unit: Dedicated 7-pin XLR M
• Audio Output: 3-pin XLR (Pin 2 hot)
• Temperature Range 14 to 140°F (-10 to 60°C)

Limited Warranty valid United States of America (*) and Canada (**):
AKG Acoustics warrants AKG products against defects in material or workmanship for a period of two years from the date of original purchase, and agrees to repair or, at our option replace any defective unit without charge for either parts or labor. AKG grants a three-year warranty covering select products mainly studio and boundary layer microphones (see list of products above) against defects in material and workmanship This warranty is valid for AKG or AKG/CROWN products purchased and delivered within the United States (*) / Canada (**) for the original purchaser only. The purchaser’s Bill of Sale will serve as proof of sale and warranty validity in the U.S (*) / Canada (**). Shipment of defective items to AKG for repair will be at the customer’s own risk and expense. AKG will assume the return shipping cost for all items repaired under warranty.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product, loss of parts, or connecting the product to any receptacle other than specified.

This warranty is void unless AKG Acoustics, U.S.’s service center(*) / the authorized AKG Service Center of Canada (**) performs the repair. No responsibility is assumed for any special, incidental or consequential damages caused by the consumer. However, the limitation of any right or remedy shall not be effective where law prohibits such.

General Return Procedures for US AKG Service
SA# IS REQUIRED for AKG repair service. Please call (818) 920-3237 and request a service authorization prior to sending out any repairs. Please be sure to attach the SA# on the outside of any repair you send in. This step will enable us to determine where your particular repair will need to be sent to insure that nothing gets lost.

RA# is REQUIRED for AKG credit returns. Please call (818) 920-3276 and request a return authorization prior to returning any AKG purchases. Please be sure to attach the RA# on the outside of any returns you send in. This step will insure that the return procedure is completed smoothly.

All AKG customer-owned products being returned for warranty service must include a copy of the customer’s bill-of-sale. Warranty approvals will not be granted if an original receipt or copy of a receipt is not enclosed.

Please enclose a note explaining the symptom or difficulties observed with the product’s performance. Also, include a contact name, the street address for return shipping and a daytime phone number should AKG need to contact you regarding your repair.
