The MicroD is primarily a drum and percussion instrument
microphone for professional stage and studio applications. The MicroD
has a uniformly controlled hypercardioid polar pattern and a smooth,
accurate response in its frequency range.
This mic is
lightweight, compact and simple to use. The MicroD is housed in an
aluminum ring and isolated by means of a rubber shock mount system.
The MicroD attaches easily and firmly to a standard drum rim
utlizing the patented DVICE rim mount system.
The MicroD is a miniaturized condenser microphone used for professional
stage and studio applications. The MicroD exudes clarity, excellent
transient response and resistance to feedback, SPL handling and ease of
operation. This mic is primarily aimed for miking drums and percussion
instruments.
The MicroD is designed with a uniformly controlled
hypercardioid polar pattern and provides excellent isolation and
feedback control on stage as well as natural sound reproduction at very
close distances. With a smooth and accurate response over a frequency
range of 40 Hz - 20 kHz, the MicroD is lightweight, compact and simple
to use.

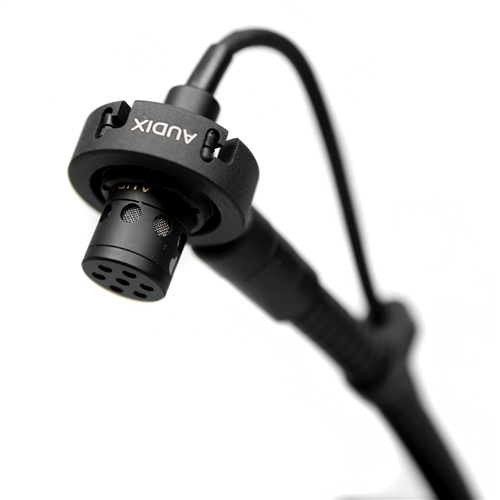

The MicroD is housed in a precision machined aluminum ring and
isolated by means of a rubber suspension shockmount system. Transducer
Type: Pre-polarized Condenser Frequency Response: 40 Hz - 20 kHz Polar
Pattern: HypercardioidOutput Impedance: 150 ohms Sensitivity: 1.5
mV/Pascal @ 1k Off Axis Rejection: >23 dB Maximum SPL: >140 dB
- Transducer Condenser (pre-polarized)
- Polar Pattern Hypercardioid
- Frequency Response 40Hz to 20kHz
- Dynamic Range (Typical) not specified by manufacturer
- Signal-to-Noise Ratio 70dB (ref 1k @ 1 Pascal)
- Maximum Input Sound Level 140dB
- Power Requirements 9V - 52V Phantom Power
- Output Impedance 250 Ohms
- Output Connectors 3-pin XLR male
- Pad No
- Low Frequency Roll-Off No
- Dimensions 1.14 x .47" (29 x 12mm) (Length x Diameter)
- Weight 2 oz (57 g)
- Download pdf
Audix Limited Warranty Audix guarantees our products to be free of manufacturing defects as follows: 5 years for dynamic microphones. 3 years for condensers and wireless products.
Products found to be malfunctioning due to a manufacturing defect will be repaired or replaced at no charge to the customer. All other repairs will result in a nominal service charge
|
