JBL PRX712 2x15 2-Way 1500-Watt Self-Powered Loudspeaker (Single Speaker)




Alternative Views:




Authorized Dealer

Price: $849.00
UPC: 658700910251
Part Number: PRX-712


Product Code: JBL-PRX-712


Choose a Condition:


Qty:
DESCRIPTION
SPECIFICATIONS
IN THE BOX

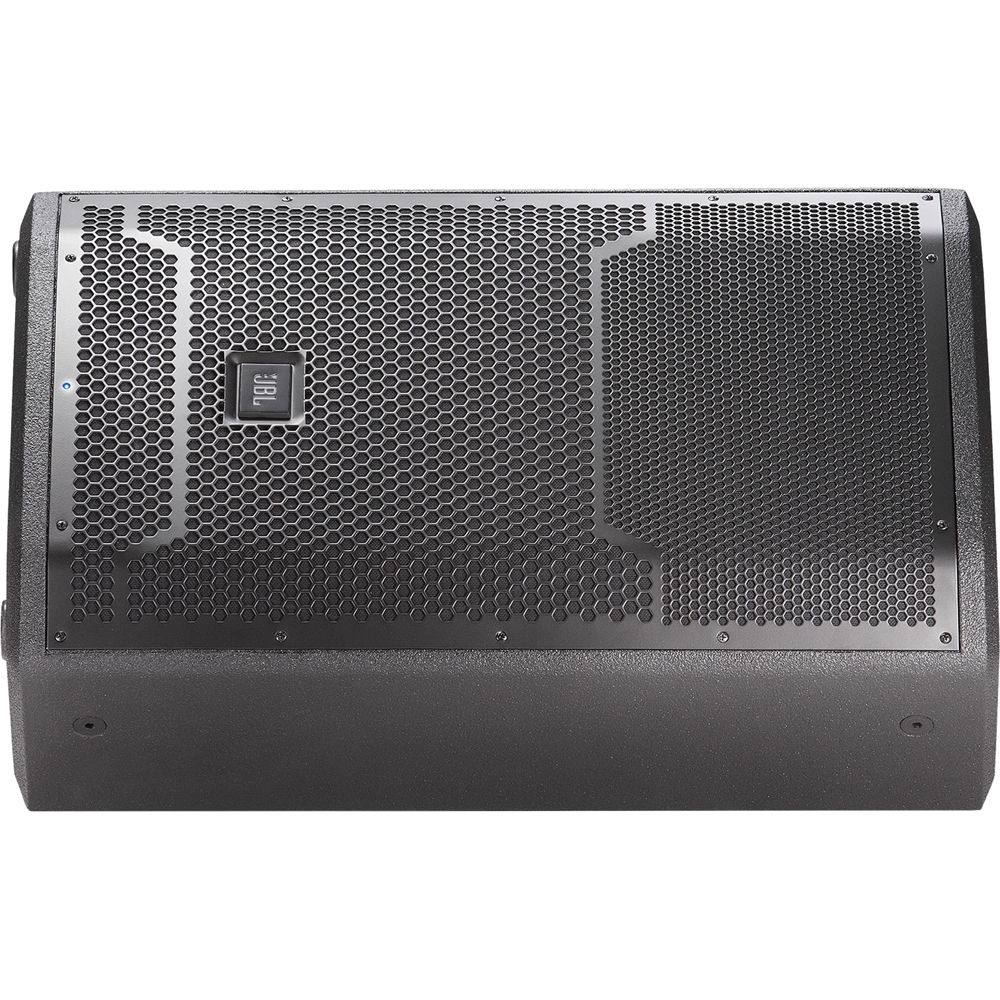

The 12" JBL PRX712 1500W Two-Way Multipurpose Self-Powered Speaker is designed to be a stage monitor or front of house PA for live sound reinforcement applications, such as concerts, schools, and houses of worship, among others. The speaker is built from poplar plywood with an obsidian DuraFlex finish using tongue and groove joinery for stronger bracing and less box vibration.

It utilizes a 12" low-distortion, low-frequency woofer, a wave-guided 1.5" diameter neodymium compression driver, and a class-D amplifier to achieve a maximum SPL of 135 dB and a frequency response of 44.8 to 19,600 Hz. For easy transport and setup, the speaker includes an injection molded handle, 16-guage steel dent-resistant cloth-backed grills, integrated M10 suspension points for hanging, and integrated 36mm pole mount sockets for use with a speaker poles.

The back panel of the speaker features two combination 3-pin XLR and 1/4" balanced inputs for microphone and line signals with a selector switch as well as a pair of unbalanced RCA inputs. Two gain control knobs allow you to adjust the input signal on channels 1 and 2, and a 3-pin XLR male thru connection with thru selector switch enables passing audio to another powered speaker or amplifier.

The device includes an EQ boost button for widening the speaker's frequency response and a button for turning on and off the power/standby LED on the front of the device. The speaker's crossover, dynamic limiting, component optimization, and selectable EQ boost is handled by a dbx type IV circuit. The unit can be used by itself or connected with other PA speakers and subwoofers to build larger systems with increased crowd coverage and low frequency response.


  • 135 dB peak SPL
  • 12" Differential Drive® low-frequency driver for low-distortion and higher SPL
  • 1.5" diameter next generation JBL neodymium compression driver
  • JBL designed waveguide for accurate coverage
  • Efficient Class-D amplifier technology
  • Optimized EQ for monitor or front-of-house applications
  • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • Line level and direct microphone input capability
  • Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
  • Multi-angle enclosure for main PA or floor monitor applications
  • Integrated 36 mm pole mount socket with angle down tilt
  • Injection molded handle with backing cup for easy transport
  • Integrated M10 suspension points for easy setup
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles

  • PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX718XLF subwoofer, offering a high performance self-powered sub/sat system.

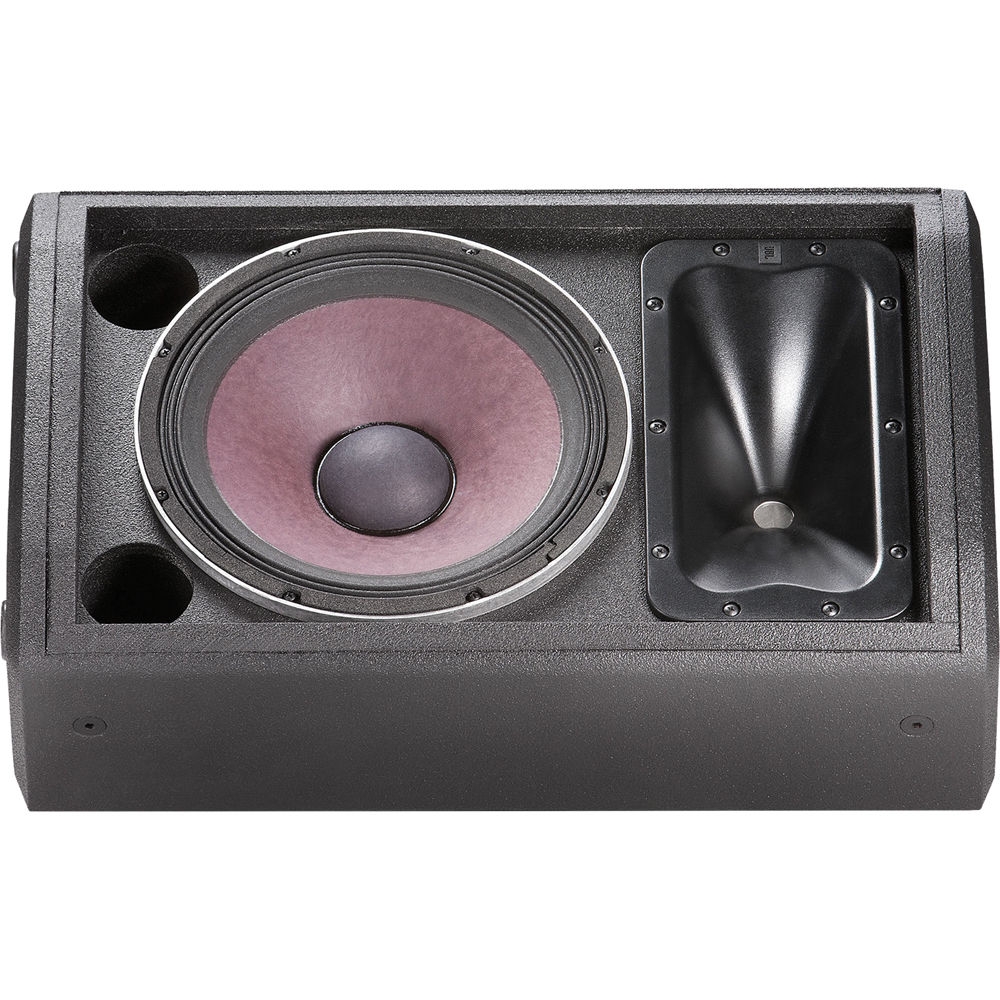

  • The PRX712 is comprised of a 12" Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
    1000 lbs. each.
  • The amplifier input panel offers XLR or Ľ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

DESCRIPTION

  • JBL PRX712 1500W Two-Way Multipurpose Self-Powered Speaker (12")
  • Power Cord
  • Limited 5-Year Warranty
