Microphone Conditions (Additional comments)
Open Circuit Sensitivity At 1 kHz, with 1 Pa (Pascal) = 94dB sound pressure level (SPL), measured at diaphragm. Stated in dB re 1 volt, and in millivolts.
Noise, typical A-weighted.
Weight Stated for the microphone only, without accessories, and without attached cable/power module, if applicable.
Frequency Response (Graph) Shows mic output versus frequency with a constant sound input level from a source 0.5 meters from the diaphragm. Each vertical division in the graph is 10dB. A dashed line, if present, shows the effect of a low-roll-off (hi-pass) function.
Polar Pattern (Graph) Shows mic output versus angular direction of the sound source, with a constant sound input level at 1 kHz, at a constant distance from the diaphragm. Zero degrees (0°) is the "front" of the mic. Each circular division in the graph is 5 dB, beginning from the 0° point and counting inward.
Additional Information Profile pages for some products provide links to additional information, such as further specifications, operating instructions, product reviews, etc. These may be in various forms, such as text, graphics and pdf files.
Related Models Some profile pages provide links to other models of a most-similar or closely related type or function that may also be of interest.
Headphone/Headset Conditions (Additional comments)
Headphone Sensitivity Input of 1 milliwatt at 1 kHz into rated impedance; output in dB SPL, using a Brüel & Kjaer 4153 coupler.
Maximum Input Power At 1 kHz into rated impedance.
Boom Mic Sensitivity Open circuit, at 1 kHz, with 1 Pa (Pascal) = 94dB sound pressure level (SPL), measured at diaphragm. Stated in dB re 1 volt, and in millivolts.
Additional Information Profile pages for some products provide links to additional information, such as further specifications, operating instructions, product reviews, etc. These may be in various forms, such as text, graphics and pdf files.
Related Models Some profile pages provide links to other models of a most-similar or closely related type or function that may also be of interest.
- ELEMENTS Fixed-charge back plate permanently polarized condenser
- POLAR PATTERN X/Y Stereo
- FREQUENCY RESPONSE 100-17,000 Hz
- OPEN CIRCUIT SENSITIVITY -50 dB (3.1 mV) re 1V at 1 Pa
- IMPEDANCE 600 ohms
- MAXIMUM INPUT SOUND LEVEL 119 dB SPL, 1 kHz at 1% T.H.D.
- DYNAMIC RANGE (typical) 82 dB, 1 kHz at Max SPL
- SIGNAL-TO-NOISE RATIO 57 dB, 1 kHz at 1 Pa
- POWER REQUIREMENTS 2-10V DC plug-in power
- BATTERY TYPE 1.5V LR44
- BATTERY CURRENT / LIFE 0.6 mA / 200 hours typical
- SWITCH On/off
- WEIGHT 3.9 oz (111 g)
- DIMENSIONS 4.59" (116.5 mm) long,
- 0.83" (21.0 mm) maximum body diameter
- OUTPUT CONNECTOR 3.5 mm stereo mini plug on cable
- CABLE Permanently attached 152.4 mm - 304.8 mm (6"-12") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
- ACCESSORIES FURNISHED Video-camera shoe mount; LR44 battery; windscreen; soft protective pouch
- AUDIO-TECHNICA CASE STYLE S10
In The Box:

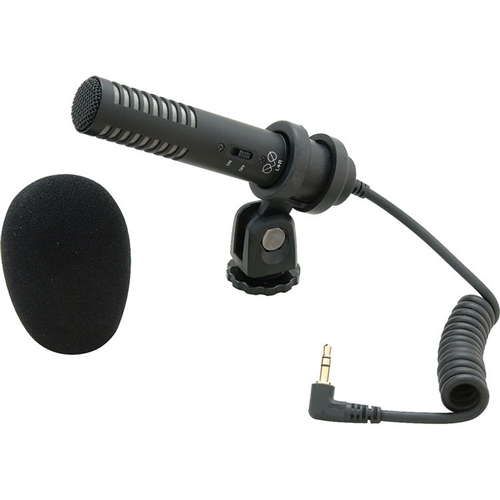

Audio-Technica Pro-24CM - Compact Stereo Condenser Microphone with Camera Shoe Mount
Video Camera Shoe Mount
LR44 Battery
Windscreen
Soft Pouch
1 Year Warranty
Warranty Information: U.S. Two-Year Limited End-User Warranty
Select Audio-Technica brand products purchased in the U.S.A. from
an authorized Audio-Technica (A.T.U.S.) dealer are warranted for two
years from date of purchase by A.T.U.S. to be free of defects in
materials and workmanship. In event of a defect, End-User’s exclusive
remedy is at A.T.U.S.’ election, the cost of repair, refund of the
purchase price in the form of credit or cash, or replacement of the
product. The product must be delivered to A.T.U.S. or an Authorized
Service Center, prepaid, together with the sales slip or other proof of
purchase date. This warranty excludes defects due to normal wear, abuse,
shipping damage, or failure to use product in accordance with
instructions. This warranty is void in the event of unauthorized repair
or modification, or removal or defacing of the product labeling. For U.S. service return instructions and procedure please go to:
www.audio-technica.com/service. A.T.U.S.’
warranty is to the End User only. Except for A.T.U.S.’ said express
warranty, A.T.U.S. MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT
TO THE PRODUCTS. A.T.U.S. SPECIFICALLY MAKES NO WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Except to the
extent precluded by applicable state law, A.T.U.S. IS NOT LIABLE FOR
CONSEQUENTIAL, INCIDENTAL, DIRECT OR SPECIAL DAMAGES ARISING, DIRECTLY
OR INDIRECTLY, IN RESPECT OF SUCH PRODUCTS OR USE OR FAILURE THEREOF,
WHETHER BASED ON BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY, TORT
OR OTHERWISE. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Outside the U.S.A., please contact your local dealer for warranty details.
|
|
|
 |
|
 |
|
